VARIABLE SPEED DRIVE SCREW AIR COMPRESSOR

The Airgain Variable Speed Drive screw air compressor, you don’t have to worry about the complexity of electrical installation and programming. All parts of the compressor are assembled before shipment, and as long as the main power supply is connected, it can start working immediately. The powerful intelligent controller continuously monitors changes in the air system pressure and accurately adjusts the speed and airflow, ensuring the air compressor always meets the system’s demands.

Key Features

If you have any enquiry we are ready to answer

The intelligent controller’s reaction rate is calculated in milliseconds, with speed corrections made within 3 ms, keeping the outlet air pressure within the minimum range.

Adjusts speed to match air demand, reducing power consumption

Reduces wear and tear, extending motor lifespan

Maintains stable air output with minimal fluctuations

Optimizes performance and monitors efficiency

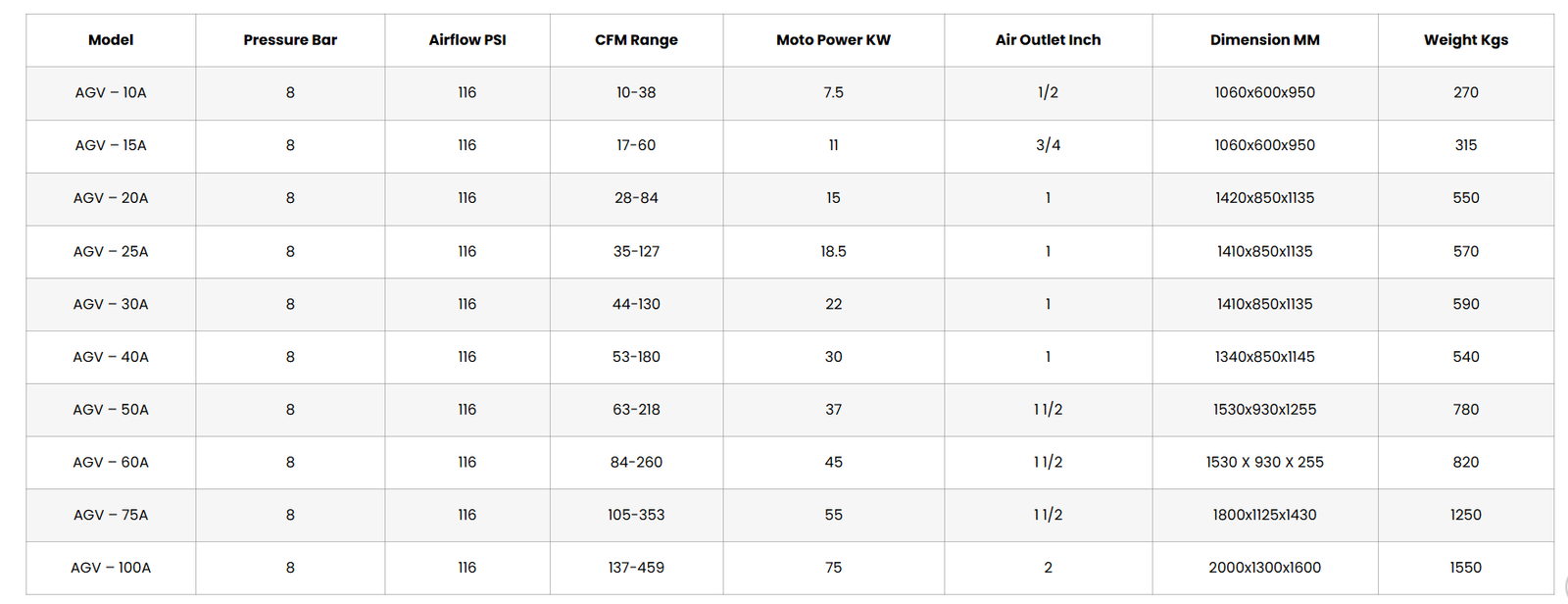

Model	Pressure Bar	Airflow PSI	CFM Range	Moto Power KW	Air Outlet Inch	Dimension MM	Weight Kgs
AGV – 10A	8	116	10-38	7.5	1/2	1060x600x950	270
AGV – 15A	8	116	17-60	11	3/4	1060x600x950	315
AGV – 20A	8	116	28-84	15	1	1420x850x1135	550
AGV – 25A	8	116	35-127	18.5	1	1410x850x1135	570
AGV – 30A	8	116	44-130	22	1	1410x850x1135	590
AGV – 40A	8	116	53-180	30	1	1340x850x1145	540
AGV – 50A	8	116	63-218	37	1 1/2	1530x930x1255	780
AGV – 60A	8	116	84-260	45	1 1/2	1530 X 930 X 255	820
AGV – 75A	8	116	105-353	55	1 1/2	1800x1125x1430	1250
AGV – 100A	8	116	137-459	75	2	2000x1300x1600	1550
