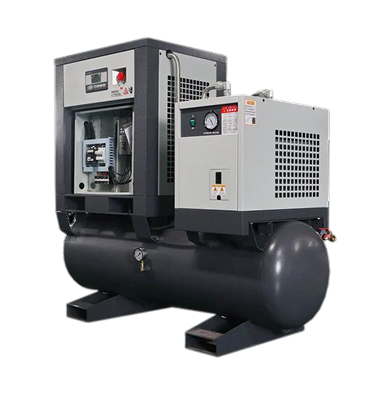

TANK & DRYER MOUNTED SCREW AIR COMPRESSOR

The Tank & Dryer Mounted Screw Air Compressor integrates a screw compressor, air dryer, and storage tank into a single unit. It provides a continuous supply of clean, dry air with high efficiency, reduced noise, and energy savings. Ideal for industrial applications, it ensures reliable performance, minimal maintenance, and optimized space utilization.

Key Features

If you have any enquiry we are ready to answer

Types 2-IN-1 TYPE & 3-in-1
Compact Design: Space-saving, all-in-one unit
Integrated Dryer: Ensures dry, moisture-free air
High Efficiency: Energy-saving performance

Model	Moto Power KW	Moto Power HP	Free Air Delivery M3/Min	Free Air Delivery CFM	Discharge Pressure MPA	Tank Volume L	Electricity V / Ph / Hz	Dimension (mm)	Weight Kgs
AHB-7A	5.5	7.5	0.75	27	0.8	300	430 / 3 / 50	1600x600x1300	370
AHB-10A	7.5	10	1.1	39	0.8	300	430 / 3 / 50	1600x730x1550	380
AHB-15A	11	15	1.5	53	0.8	300	430 / 3 / 50	1600x800x1670	420
AHB-20A	15	20	2.3	81	0.8	500	430 / 3/ 50	1650x800x1780	490

Tank & Dryer Mounted Screw Compressor (3-in-l Type)

Model	Moto Power KW	Moto Power HP	Free Air Delivery M3/Min	Free Air Delivery CFM	Discharge Pressure MPA	Tank Volume L	Electricity V / Ph / Hz	Dimension (mm)	Weight Kgs
AHB-7A	5.5	7.5	0.75	27	0.8	300	430 / 3 / 50	1900x700x1300	410
AHB-10A	7.5	10	1.1	39	0.8	300	430 / 3 / 50	1900x720x1520	425
AHB-15A	11	15	1.5	53	0.8	300	430 / 3 / 50	1900x700x1630	475
AHB-20A	15	20	2.3	81	0.8	500	430 / 3/ 50	2000x800x1800	540
