Beans Color Sorter Machine

Beans Color Sorter Machines are advanced optical sorting systems designed to identify and remove defective, discolored, or foreign materials from beans. Utilizing high-resolution CCD cameras and AI-based image processing, these machines ensure that only the highest quality beans proceed through the processing line.

Key Features

If you have any enquiry we are ready to answer

Technical Specification

Configuration of flexible and variable light source

Led lighting system with radiator, long service life, low energy consumption, good performance. Different raw materials require different spectra, we customize the light source according to the need of customer.

Technical Color high-resolution CCD image acquisition system

Use the color CCD image acquisition system to acquire the comprehensive information of red, green and blue color. The grain Sorter has the sensory ability of human eye, making better selection of materials , and satisfying the requirements better;
The maximum resolution is up to 0.15mm, can accurately identify small defects and spots on Raw materials, and the high-precision special lens ensures clear images.

Dedicated image processing algorithm

According to the characteristics of material, use the shape and color combination algorithm.
For materials with complex colors, the machine sorts materials more directly and accurately by using HSL-changed color space sorting method.

High-quality Ejector

Use High-quality,high-frequency,long service life ejector,super low air consumption guaranteed the biggest capacity,excellent rejection output .For the different sizes and characteristics of material particle, use the solenoid valve of different sizes.

Excellent rejection rate (with a ratio)

Advanced image acquisition system + intelligent image processing algorithms + high-quality nozzle system = excellent elimination rate

Simple operation, easy to learn and use

Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.

Specification

Model	6SXZ-126	6SXZ-189	6SXZ-252	6SXZ-315	6SXZ-378
Product Output (t/h)	0.5-3.0	1.5-5.0	1.5-7.0	2.0-9.0	2.5-11.0
Sorting Accuarcy (%)	99.9	99.9	99.9	99.9	99.9
Optimized Carryover (Bad:Good)	8:1	8:1	8:1	8:1	8:1
Weight (kg)	670	820	970	1120	1200
Resolution (mm²)	0.04	0.04	0.04	0.04	0.04
Power (kw)	1.4	1.8	2.2	2.6	3.0
DimensionLWH(mm)	133716362070	165116362070	196516362070	227916362070	259316362070
Power Supply (V/Hz)	220/50(110/60)	220/50(110/60)	220/50(110/60)	220/50(110/60)	220/50(110/60)

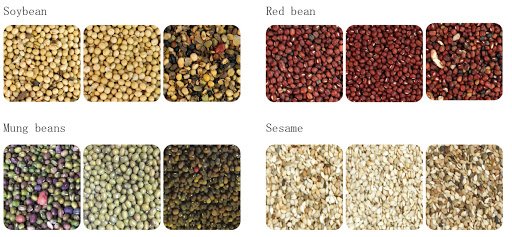

Examples of Sorting
