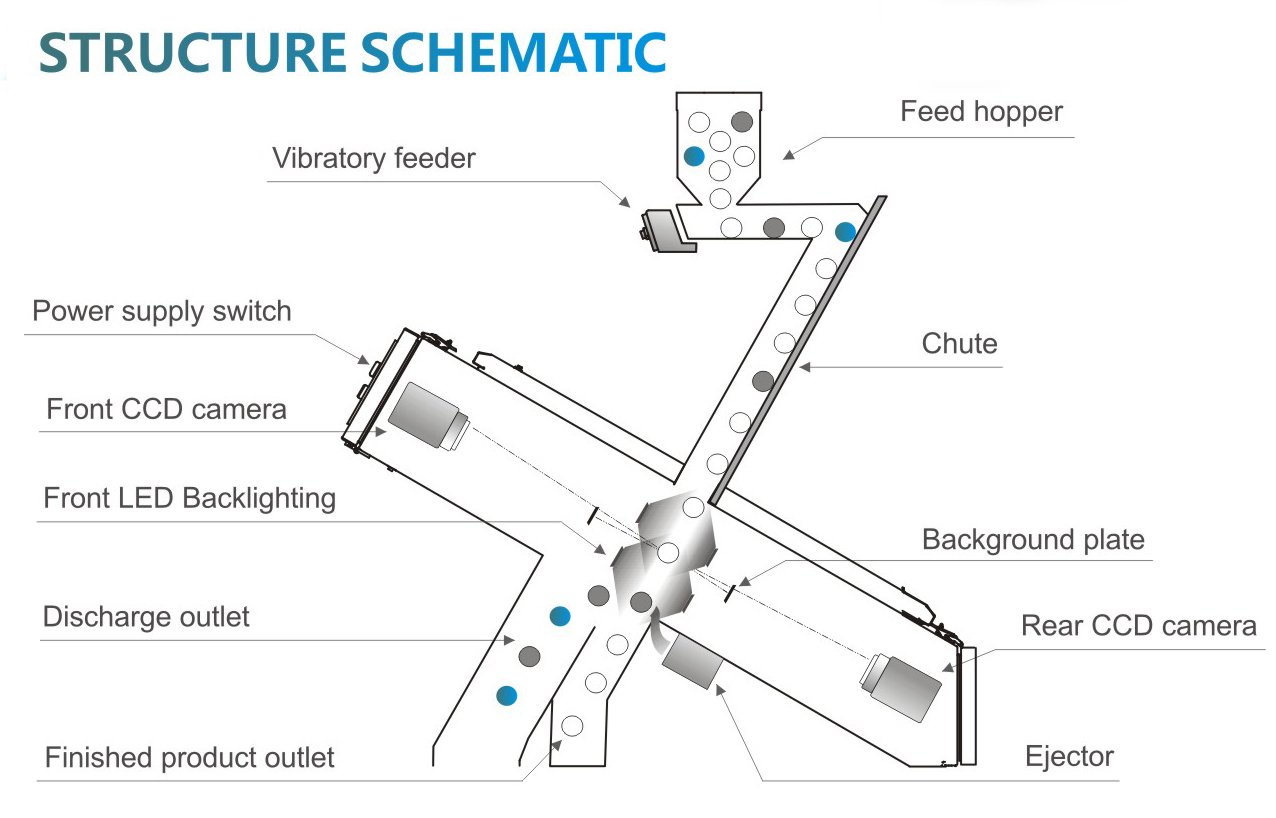

A Rice Color Sorter Machine uses high-resolution CCD cameras and image-processing algorithms to automatically remove defects such as black tips, yellowed kernels, chalky grains, stones, and other impurities from rice. It’s often employed at the final stage of rice milling to enhance product quality and uniformity.
- 5400 high-resolution CCD Camera.
- Ejectors imported from Italy, “Matrix†Brand, Small air holes with powerful shots yielding the best carryover rate 10:1.
- Powerful system and hardware controller chip imported from USA, “TI Instrument†brand.
- Ultra-fast data computing capability enabled by FPGA chip imported chip from USA, “ALTERA†brand.
- Patented intelligent image processing algorithm software with KHMER Language interface.
- Multi-sorting modes: enable to sort chalky kernels and discolored rice spontaneously.
- With Life-Long lifespan LED Lamps: improved color sorting performance and cut down maintenance time.
- Compact optical system design for precise and automatic calibration of the system, combined with well-developed User-Friendly interface to make the operation user-friendly and simple.
| Model | Practial Capacity | Required power | No of Cameras | Ejector Accuracy | Carryover | Outside Dimensions | ||
| T/h | Kw | Unit | % | Rate | L | H | W | |
| UTS2A-126 | 1.5 ÷ 2 |
1.4 + 7.5 | 4 | 99.99 | >10:1 | 1320 | 2253 | 1500 |
| UTS3A-189 | 2.5 ÷ 3 |
1.8 + 11 | 6 | 99.99 | >10:1 | 1660 | 2253 | 1500 |
| UTS4A-252 | 3.5 ÷ 4 |
2.2 + 15 | 8 | 99.99 | >10:1 | 2020 | 2253 | 1500 |
| UTS5A-315 | 4.5 ÷ 5 |
2.6 + 22 | 10 | 99.99 | >10:1 | 2256 | 2149 | 1500 |
| UTS6A-378 | 5.5 ÷ 6 |
3 + 22 | 12 | 99.99 | >10:1 | 2440 | 2060 | 1628 |
| UTS10A-630 | 9 ÷ 12 |
6 + 30 | 20 | 99.99 | >10:1 | 2273 | 2190 | 2824 |
| UTS12A-756 | 11 ÷ 14 |
7.2 + 40 | 24 | 99.99 | >10:1 | 2550 | 2190 | 2824 |

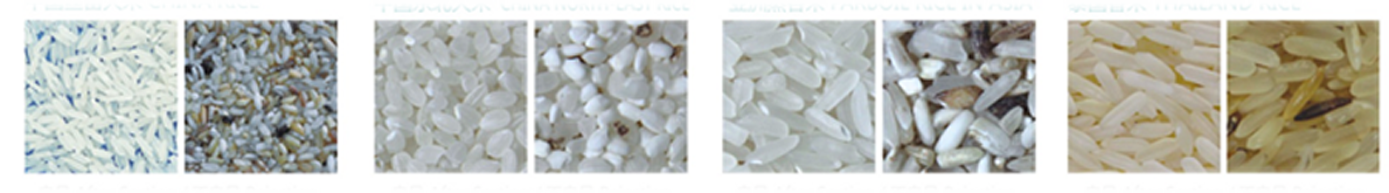

Examples of Sorting
